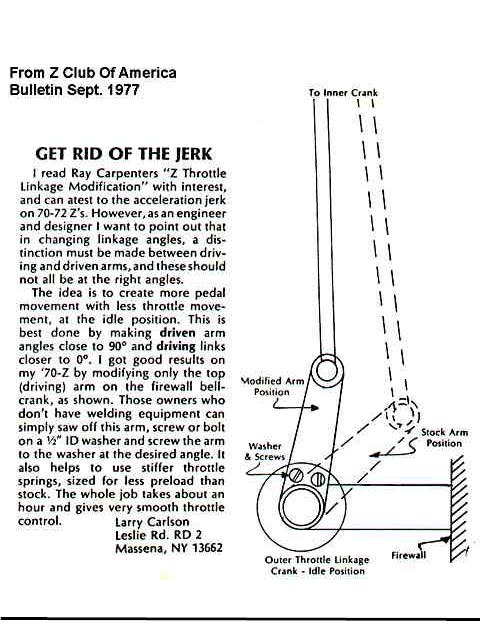

Re-published from the Z Car Club Of America's
Bulletin Sept,. 1977
by: Carl Beck, IZCC #260
Photo's Of The Finished Modification by Dan Wall, CZCC

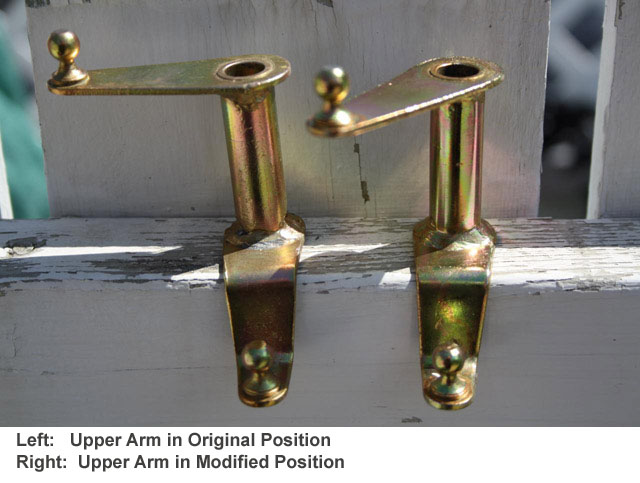

Below: Here the tube that connects the upper and lower arms was cut in half, the position of the upper arm moved and then the tube was welded back together.

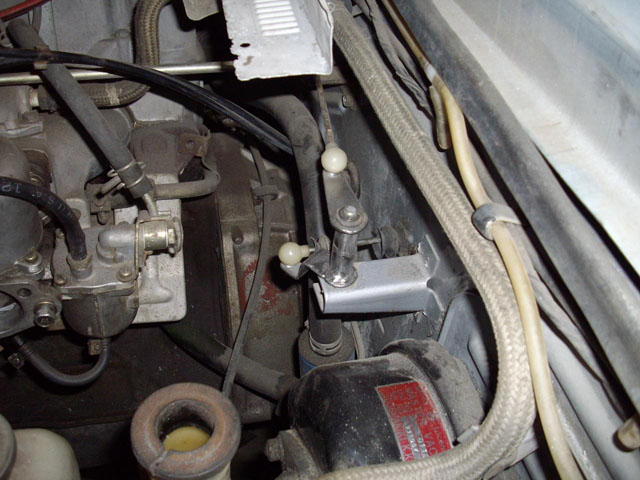

Below: After the modification was made, the part was re-plated to its original appearance.
