How To Wire The ZX Distributor and Ignition Module; or the Pertronix Ignition, into your 70-72 OEM Wiring

Contributed By: John Hull
As of 30 April 2002

I drew these wiring diagrams up after hearing many problems with Tachs etc. after folks made conversions. The truth is that 'yes' you can easily use the 240 tach with either the Pertronix or the ZX ignition conversion.

I have sent these files to other Z enthusiasts and they have ALL been successful in converting and having their tachs function properly. I have attached the diagrams to this email. Please feel free to republish them on the Z Car Home Page to share with any Z owners who are interested.

John Hull
aka JohnH240
Original owner 72 240Z
Secy/Newsletter ed
Z Car Club of Ohio

Click on images below to view full size.

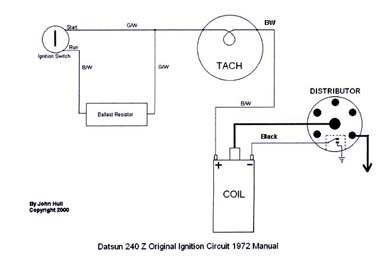

Below: OEM Wiring 70-72 240-Z Ignition.

Below: OEM Wiring To ZX Distributor and Ignition Module

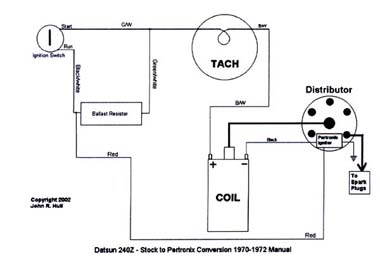

Below:OEM Wiring To Pertronix Ignition
