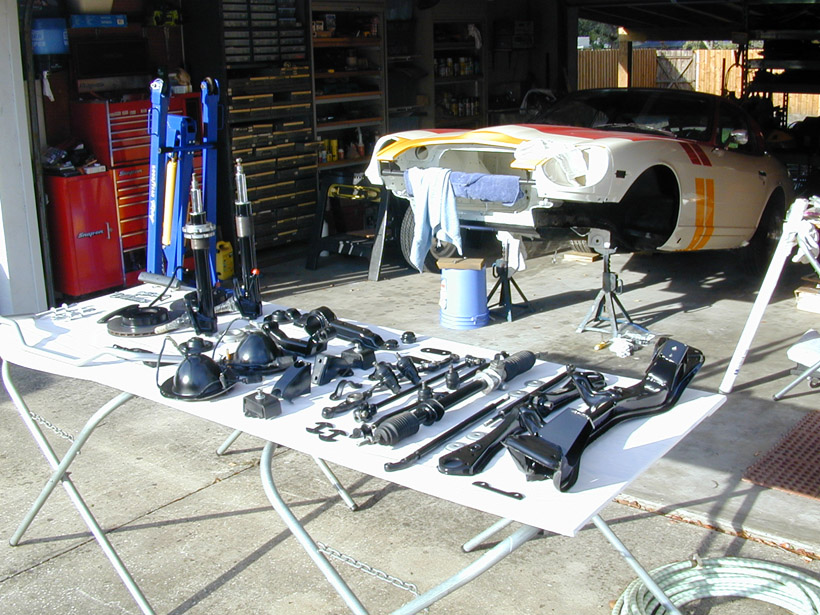

Below: Front Suspension after clean/paint/rebuild

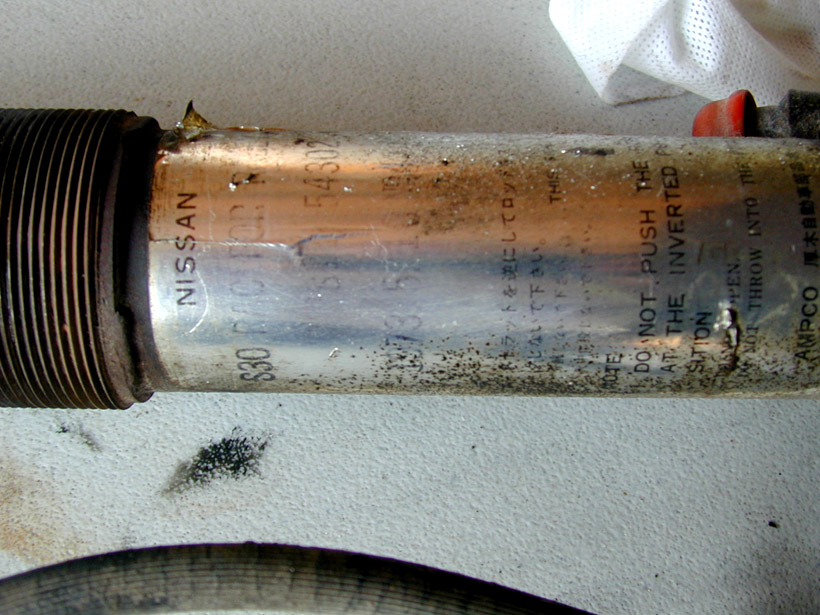

Below: Tubes are the same on both R & L struts.

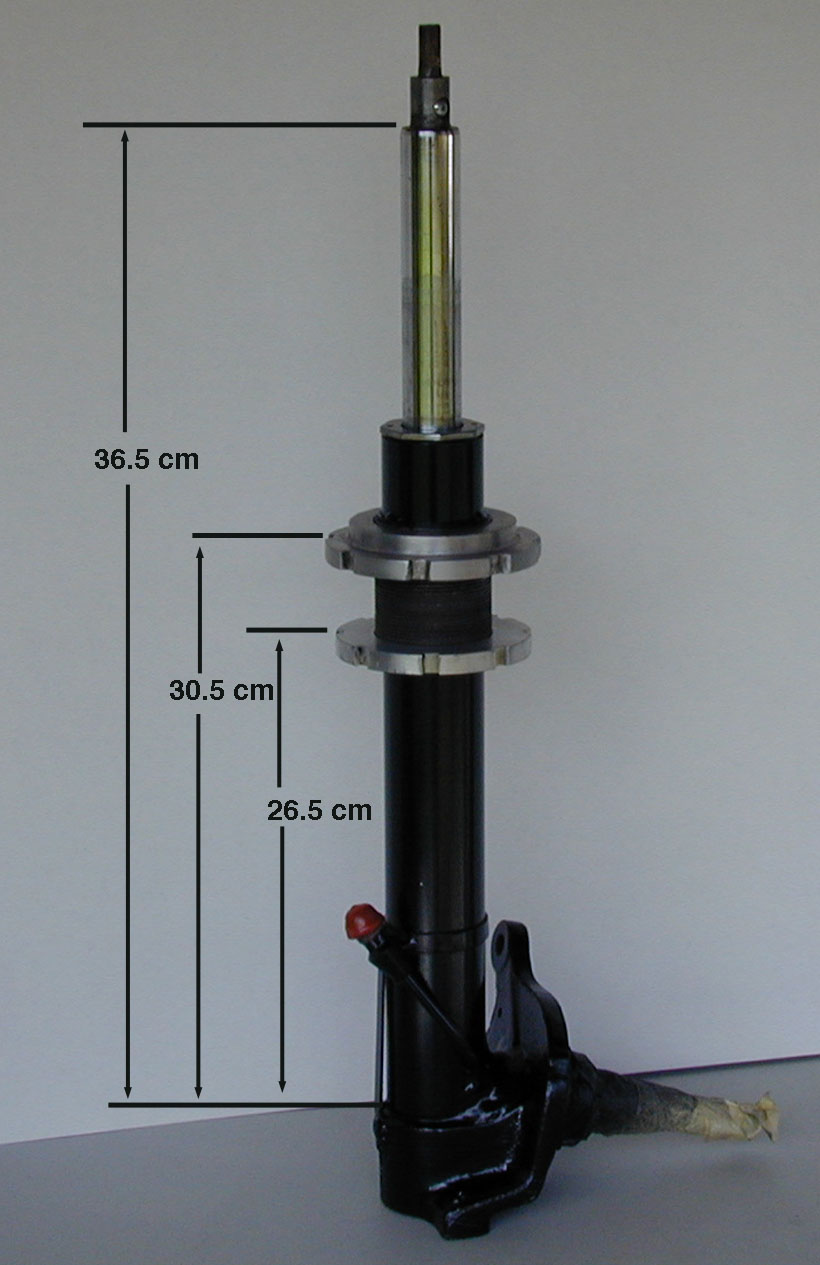

Below: Measured from base to spring seat surface

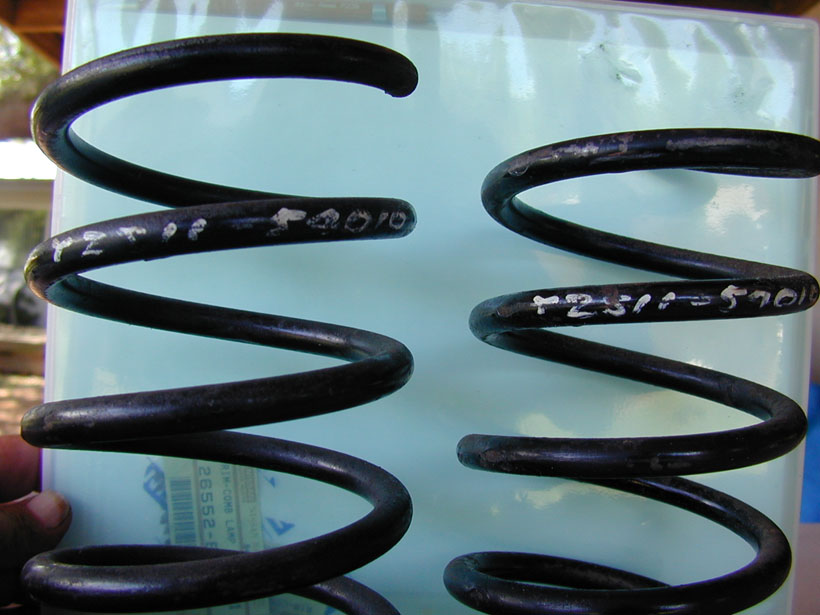

Below: Springs are marked..Y2S11-54010, 6 coils, 11.36mm wire diameter, free lenght is 220 mm
